VITRO

Window axial fan

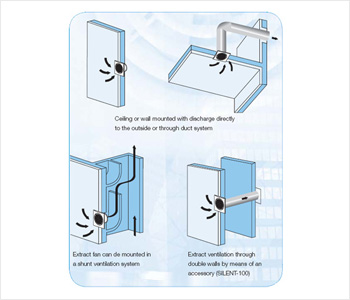

For wall, window, double glazed and double window installation. To exhaust air directly to the outside. Suitable for domestic and commercial applications. Available models: 6”, 9” and 12”.

Versions:
MANUAL
Vitro 6” and 9”. Pull cord operated, the shutters open and the motor starts running when the cord is pulled.

AUTOMATIC
Vitro 6”, 9” and 12”. Silent and slow shutter operation via thermal actuator. Delayed action. Vitro 9” and 12” suitable for reverse running, intake or extract.

When Vitro 9” and 12” are used with a RVS/R controller, the shutter can be set open with the fan motor switched off to provide natural ventilation without the security risk of an open window.

Construction
• Manufactured in shock-proof high quality technopolymer.
• Provided with an external rain protected grille IPX4.
• Maintenance free, self lubricating sleeve bearing motor for long life and noiseless running.
• Thermal protected induction motor, 230V – 50 Hz.
• Fans comply with CEI 61/28 - IEC 342-1, EC Low Voltage Directive 73/23 – 93/68 and EC Directive EMC 89/336.
