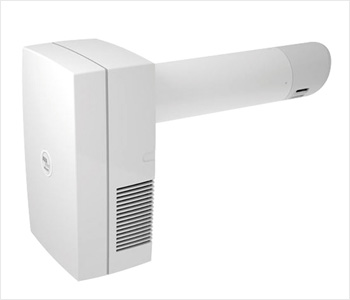

REC Smart

Decentralized high-efficiency heat recovery unit

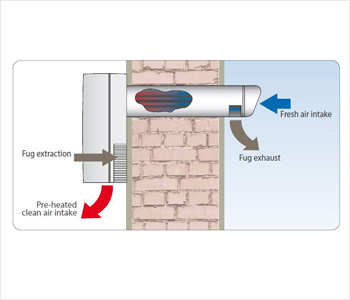

REC Smart is an innovative decentralized intake and extract ventilation unit with high-efficiency heat recovery up to 75%. The unit is suitable for installation in single rooms up to 40 sqm. It is the ideal solution in case of refurbishment and a drastic solution to humidity and condensate problems. Its installation is of extreme ease as it is indeed sufficient to make a ø100 mm hole in the perimetric wall of the house.
Thanks to its integrated by-pass function and its double EC motors, Aera Smart provides a four-season comfort at very low energetical costs. Installation can be horizontal or vertical according to the available space.

Aera Smart is available in 3 models with duct diameter of 100 mm and wall thickness of 400, 500 and 600 mm.

Operation and versions
Aera smart is designed for a 24 h running at the minimum speed. The boost at the higher speed can be manual (through remote push button / switch) or automatic (through the humidistat) according to the choosen version:

Standard version:
24 h running at the minimum speed and boost at the highest speed through remote control. The highest speed is provided with a timer (adjustable from 0 to 30 minutes). Once the timer running cycle is over, the fan turns back to operate at the minimum speed.

MHY version:
24 h running at the minimum speed and boost at the highest speed automatically through the humidistat.
The highest speed is reached progressively according to the level of humidity detected by the humidity sensor. Once the indoor humidity level turns back to the minimum pre-set level (adjustable on the hygrostat between 40 to 90% of relative humidity), the fan automatically switches to the minimum speed. Also this version is provided with an adjustable timer (from 0 to 30 minutes) which allows to turn on the fan at the maximum speed. Such function is useful when it is necessary to have the fan operating at the maximum speed independently from the indoor humidity level.
